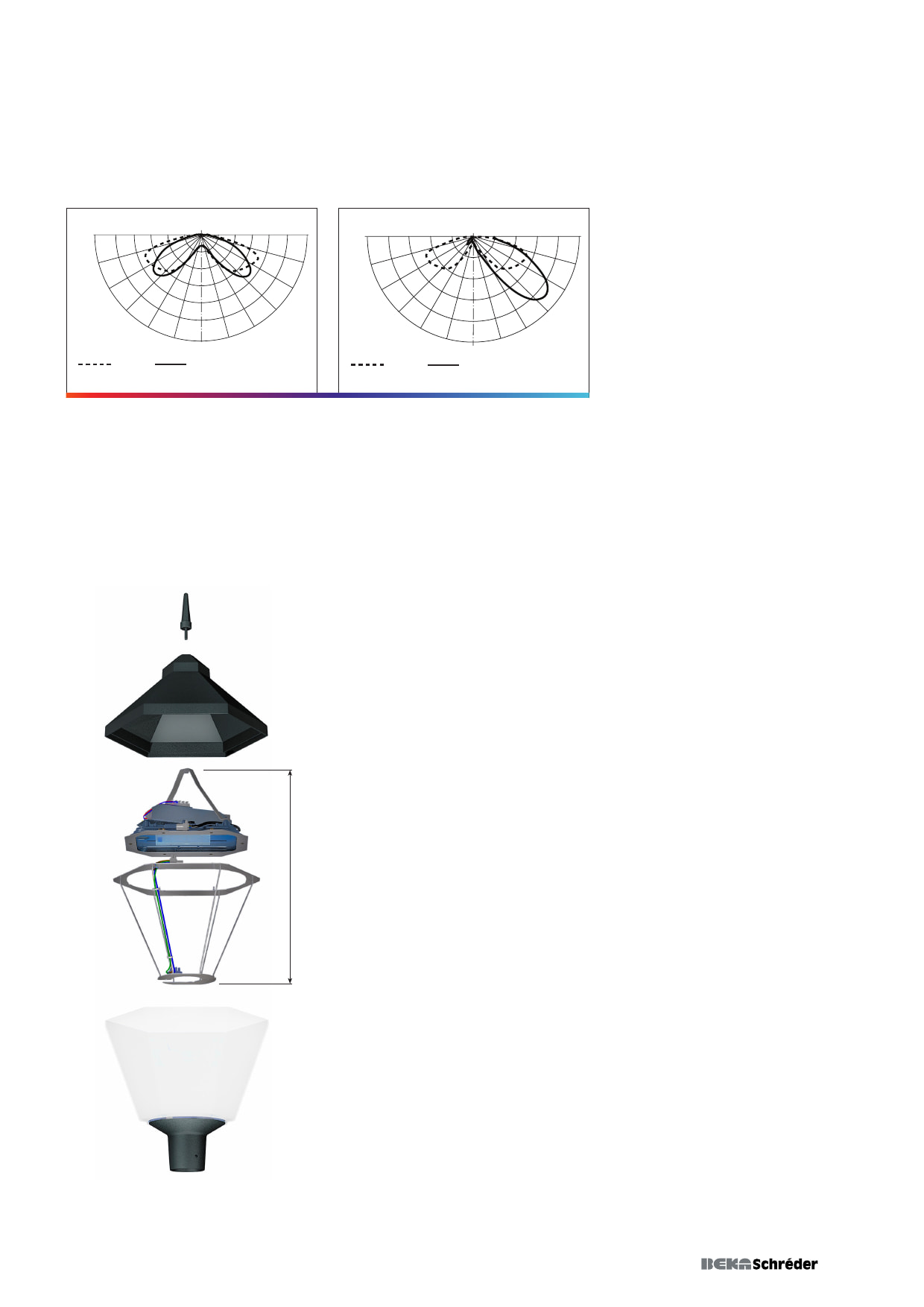

Construction Details The luminaire consists of a spigot base, optical compartment with integral control gear and top cover and is designed to operate LEDs of up to 54W. The cable entry grommet is designed for the connection of a 3 x 1.5mm2 cabtyre, of an overall diameter of 9mm.
SABS Marks The luminaire bears the SANS 475 performance mark and the SANS 60598-2-3 safety mark. Luminaire spigot entries comply with SANS 1088 - Table 1 for Type 2: ø76mm x 75mm.
Ingress Protection The luminaire has a degree of protection that complies with SANS 60598-2-3: Optical compartment: IP 55 The IP rating is certified by an SABS test report.
Top Cover The top cover is robustly constructed from die-cast aluminium, powder coated for added protection in the colour specified and is firmly secured with a single aluminium decor casting. White reflective paint on inside.
Spigot Base The spigot base is manufactured from high-pressure die-cast aluminium, powder coated for added protection in the colour specified. The luminaire is secured to the pole by three M8 stainless steel grub screws.
Diffuser The high-impact non-discolouring acrylic diffuser bowl is hexagonal in shape and is smooth on the outside, but has internal prisms to reduce the direct glare component. A drip ridge is provided at the bottom edge to avoid direct rain water contact with the gasket.
Electrical Components The control gear is incorporated inside the luminaire and is mounted on a removable gear tray. The nominal voltage is rated at 198-264V 50Hz single phase. All control gear components are removable and bear the relevant SABS mark. All internal wiring is Teflon® coated with protective sleeving to prevent damage by possible abrasion. All screws, bolts and metal parts are stainless steel or non-corrosive material. Mains connections are by means of a suitable screw terminal block with a wire clamping contact. The power factor is rated at ≥0,9.
