Description HTm HM m

E m

U m

D mm

C mm

K 18 76 20 2.6 2.0 0.6 0.5 121 400

K 18 76 25 3.1 2.5 0.6 0.5 131 400

K 18 76 30 3.6 3.0 0.6 0.5 135 400

K 18 76 35 4.1 3.5 0.6 0.5 146 400

K 18 76 40 4.6 4.0 0.6 0.5 157 400

K 18 76 45 5.2 4.5 0.7 0.5 168 400

K 18 76 50 5.7 5.0 0.7 1.0 177 400

K 18 76 55 6.3 5.5 0.8 1.0 180 400

K 18 76 60 6.9 6.0 0.9 1.0 184 400

K 18 76 65 7.4 6.5 0.9 1.0 192 400

K 18 76 70 8.0 7.0 1.0 1.0 202 400

K 18 76 75 8.6 7.5 1.1 1.0 210 400

K 18 76 80 9.2 8.0 1.2 1.0 220 500

K 18 76 85 9.8 8.5 1.3 1.0 230 600

K 18 76 90 10.4 9.0 1.4 1.0 230 600

K 18 76 95 11.0 9.5 1.5 1.0 240 700

K 18 76 100 11.6 10.0 1.6 1.0 250 800

K 18 76 115 13.4 11.5 1.9 1.0 320 800

K 18 76 120 14.0 12.0 2.0 1.0 340 1 000

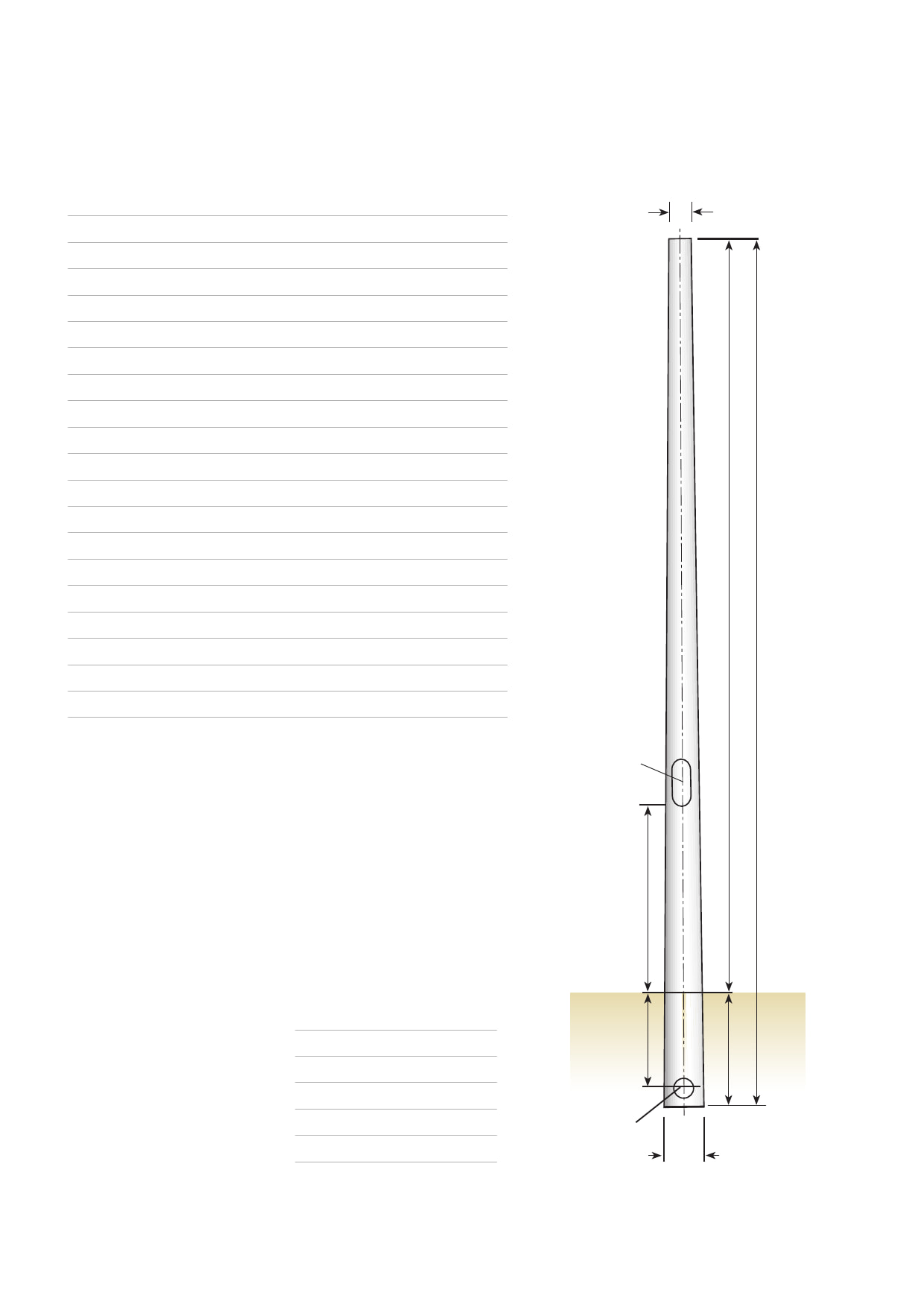

HT Total length

HM Mounting height

D Base diameter

C Depth of cable entry

U Access door height

E Buried depth

NOTE: All measurements are approximate

ø76

H T

H M

A cc

es s

D o o r

8 0 x2

4 0

U C

E

ø 8 0

C ab

le E

nt ry

D
