Ordering Information

Switching/dimming control

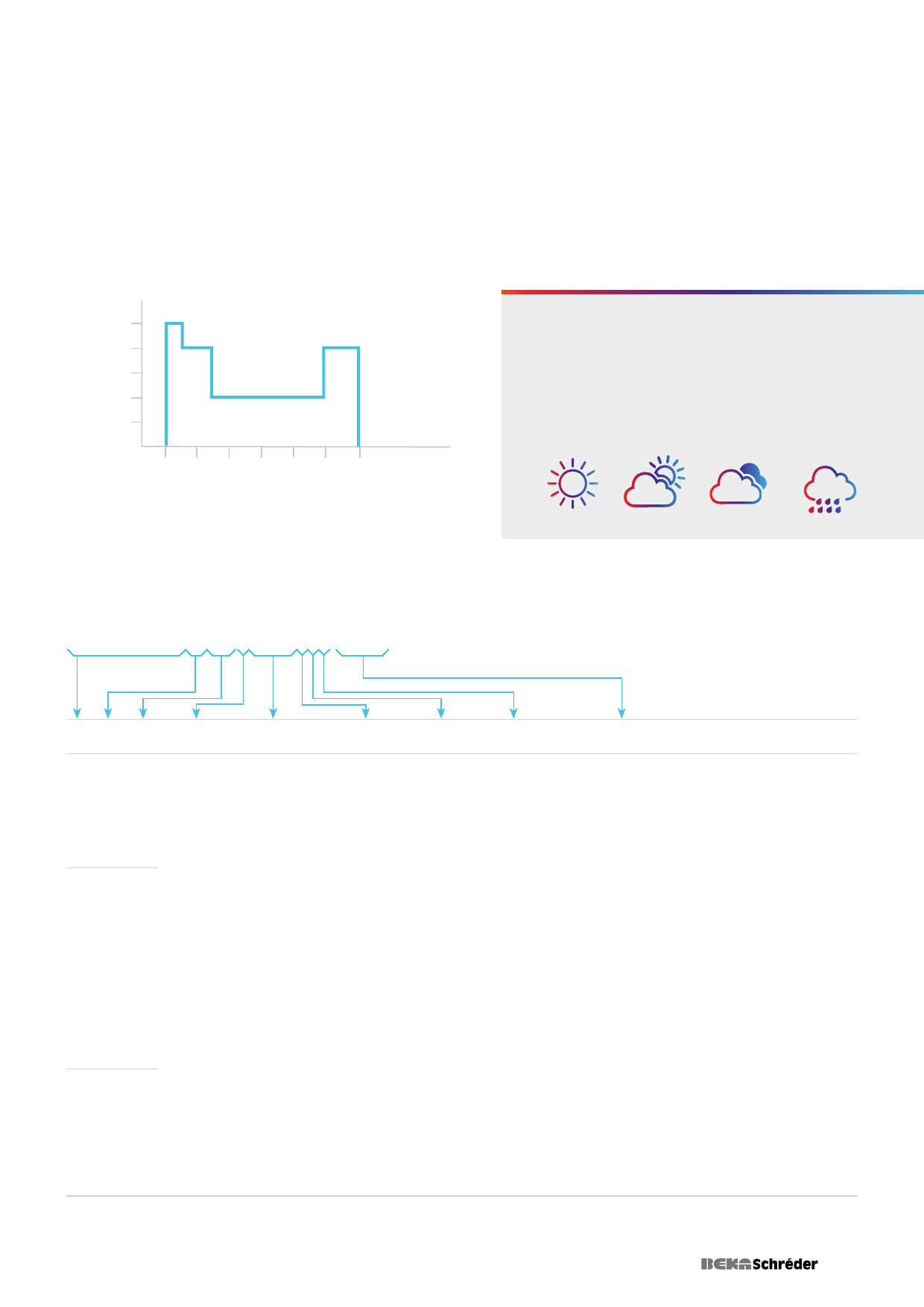

Optidim Intelligent luminaire drivers can be programmed in the factory with complex dimming profiles. Up to 5 combinations of time intervals and light levels are possible. This feature does not require any extra wiring. The period between switching on and switching off is used to activate the preset dimming profile. The customised dimming system generates maximum energy savings while respecting the required lighting levels and uniformity throughout the night.

PERFORMANCE

LIGHT OUTPUT

TIME

100 %

80 %

60%

17 21 23 01 03 05 07

40 %

Daylight switch

Our solutions can be managed by photoelectric sensors that switch on the luminaires exactly when natural light becomes insufficient (cloudy day, night fall ) so as to provide safety and comfort in the public space.

20 %

ID LED Watt LED Colour Optic* Colour options Surge

Protection Protector Switching/dimming

control Other options / accessories

LE D

LU M

E M

I 8 8 8 8 16 16 16 16

10 14 20 29 19 26 37 55

N Neutral White

(4000K) W

Warm white (3000K)

C Cool white

(5700K)

5068 5098 5112 5117 5119 5120 5121

5139**

5140**

5188** 5244** (5136***) 5245** (5137***) 5247** (5138***) 5248** (5118***)

A Aluminium

finish (unpainted)

S Pearl Light

Grey (RAL 9022),

Textured finish B

Black (RAL9017),

Textured finish W

White (RAL9003),

Textured finish O

Painted Other (RAL / Finish

[Brilliant/Matt])

1 10kV

2 20kV

G Glass

P Polycarbonate

DL Downward facing daylight switch

N3 NEMA 3-Pin Socket Only

N7 NEMA 7-Pin Socket Only

NR NEMA complete with Royce Thomson DLS

NS NEMA complete with

Spectrum DLS 3D

NEMA 3-Pin complete with dummy link

7D NEMA 7-Pin complete

with dummy link PI

NEMA 7-Pin complete with plug-in 20kV surge

protection CM

Owlet CM P7

Owlet LuCo-P7 TO

DIM (Optidim)

Nominal Voltage 90-305V - 50Hz

Mounting Ø42mm levelling spigot

adaptor

Vandal-resistant Vandal-resistant version, preventing unauthorised

access to the luminaire by means of a special coded

access screw

Theft-proof Theft-proof version, preventing removal of the luminaire on a ø42mm spigot (this requires a

pre-drilled spigot)

Jig theft-proof Jig for drilling ø42mm pole

spigot to make it suitable for theft-proof version

Tool theft-proof Tool to open access screw for

vandal-resistant and theft- proof version

Photometry Back light control

LE D

LU M

E M

D 24 24 24 24 32 32 32 32 48 48 48 48 64 64 64

27 38 54 81 35 50 70 108 52 73 104 162 68 97 138

LE D

LU M

E M

A 80 80 80 96 96 96 128 128 128

84 121 174 103 148 208 135 194 276

Example:

LEDLUME MD64138N5068A1G NRTO

(*) For further assistance please contact our Applications Department (**) Optics not available for 8 LED version (***) Previous optic number. Due to better performance the optic was upgraded and was subsequently renumbered.
