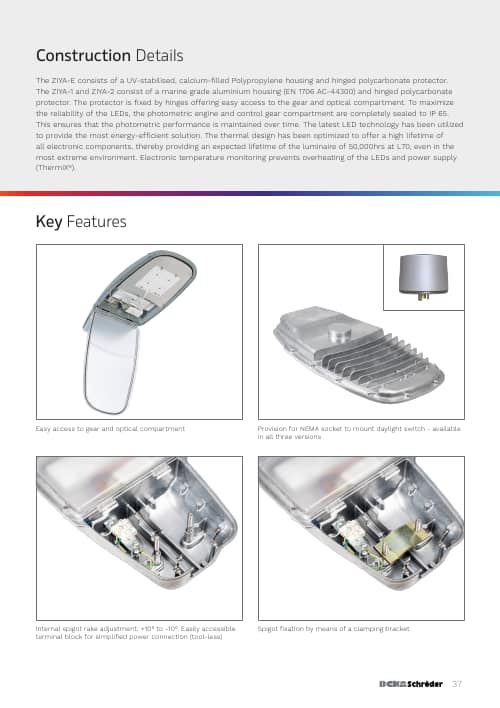

Construction Details The ZIYA-E consists of a UV-stabilised, calcium-filled Polypropylene housing and hinged polycarbonate protector. The ZIYA-1 and ZIYA-2 consist of a marine grade aluminium housing (EN 1706 AC-44300) and hinged polycarbonate protector. The protector is fixed by hinges offering easy access to the gear and optical compartment. To maximize the reliability of the LEDs, the photometric engine and control gear compartment are completely sealed to IP 65. This ensures that the photometric performance is maintained over time. The latest LED technology has been utilized to provide the most energy-efficient solution. The thermal design has been optimized to offer a high lifetime of all electronic components, thereby providing an expected lifetime of the luminaire of 50,000hrs at L70, even in the most extreme environment. Electronic temperature monitoring prevents overheating of the LEDs and power supply (ThermiX®).

Internal spigot rake adjustment: +10° to -10°. Easily accessible terminal block for simplified power connection (tool-less)

Key Features

Spigot fixation by means of a clamping bracket

Provision for NEMA socket to mount daylight switch - available in all three versions

Easy access to gear and optical compartment
