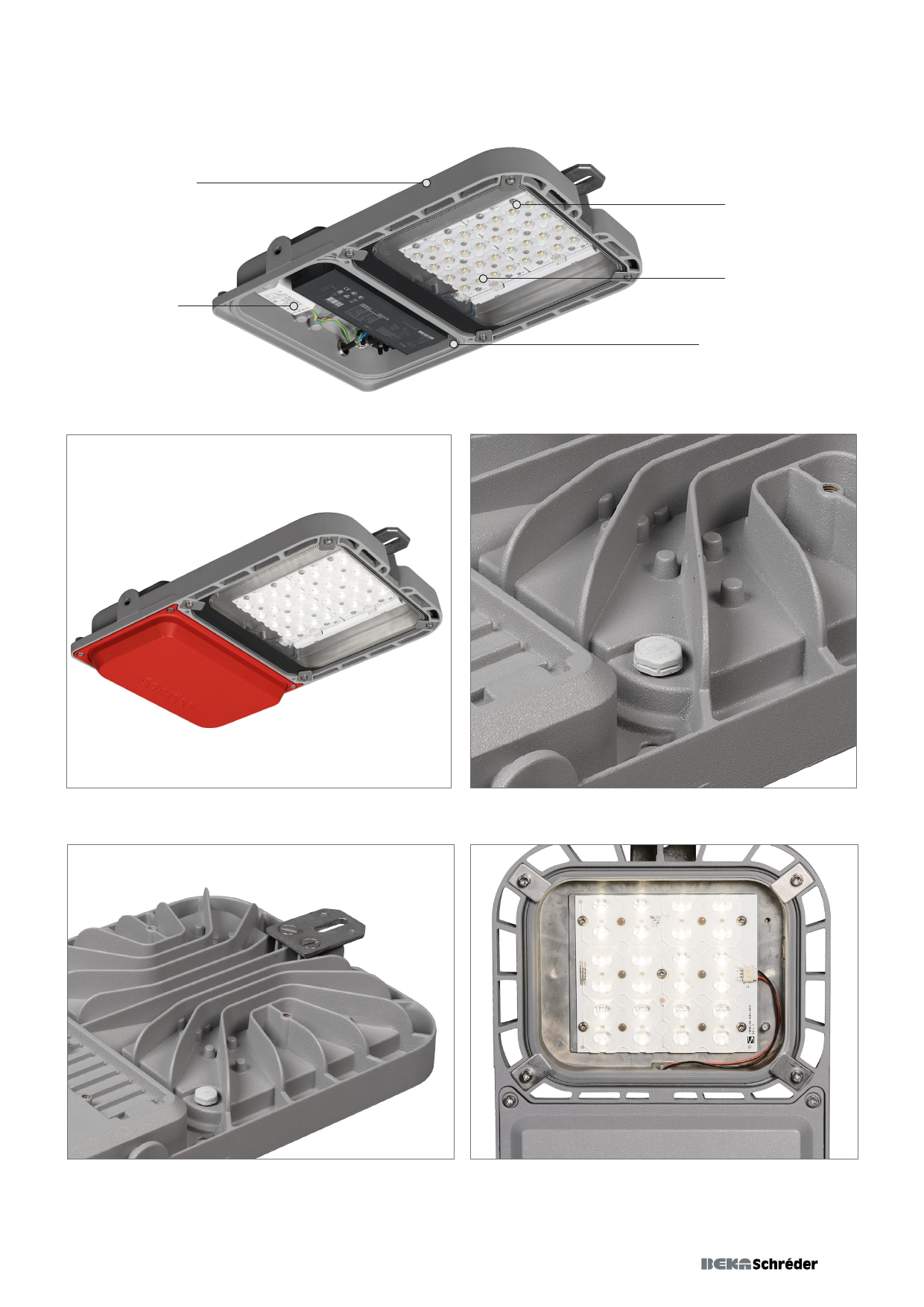

Nominal flux (lm)

(*)

Power consumption

(W)

Nominal efficacy (lm/W)

Luminaire output

flux (lm)

Luminaire efficacy (lm/W)

Photometry

Luminaire Number of LEDs Current

(mA) Line

Current (A) Typical Typical Typical Typical Typical

M IN

I

8 700 0.09 2631 20 132 2184 109

8 1000 0.13 3498 29 121 2903 100

16 700 0.16 5157 37 140 4280 116

16 1000 0.24 6995 55 128 5806 106

24 700 0.24 7676 54 143 6371 118

M ID

I 24 1000 0.36 10493 81 130 8709 108

32 700 0.31 10235 70 147 8495 121

M ID

I (E

m e rg

e n cy

v e rs

io n ) 16 700 0.16 5157/745(EM) 37 140 4280 116

16 1000 0.24 6995/745(EM) 55 128 5806 106

24 1000 0.36 10493/745(EM) 81 130 8709 108

32 700 0.31 10235/745(EM) 70 147 8495 121

Tolerance on LED flux is ± 7% and on total luminaire power ± 5% (*) The nominal flux is an indicative LED flux @ Ts 85°C based on LED manufacturer s data. The real flux output of the luminaire depends on environmental conditions (e.g. temperature and pollution) and the optical efficiency of luminaire. The type of LED used is subject to change due to the ongoing rapid progress taking place in LED technology.

Performance

370
