Characteristics

General information

Recommended installation height

2m to 5m

Driver included Yes

ROHS compliant Yes

Testing standard SANS 60598

Housing and finish

Housing High-impact polycarbonate

Protector High-impact polycarbonate (*)

Tightness level IP 65

Colour Telegrey 1 (RAL 7045)

Impact resistance IK 08 (*) Suitable for Food & Beverage industry

Dimensions and mounting

Weight (kg) 2.1

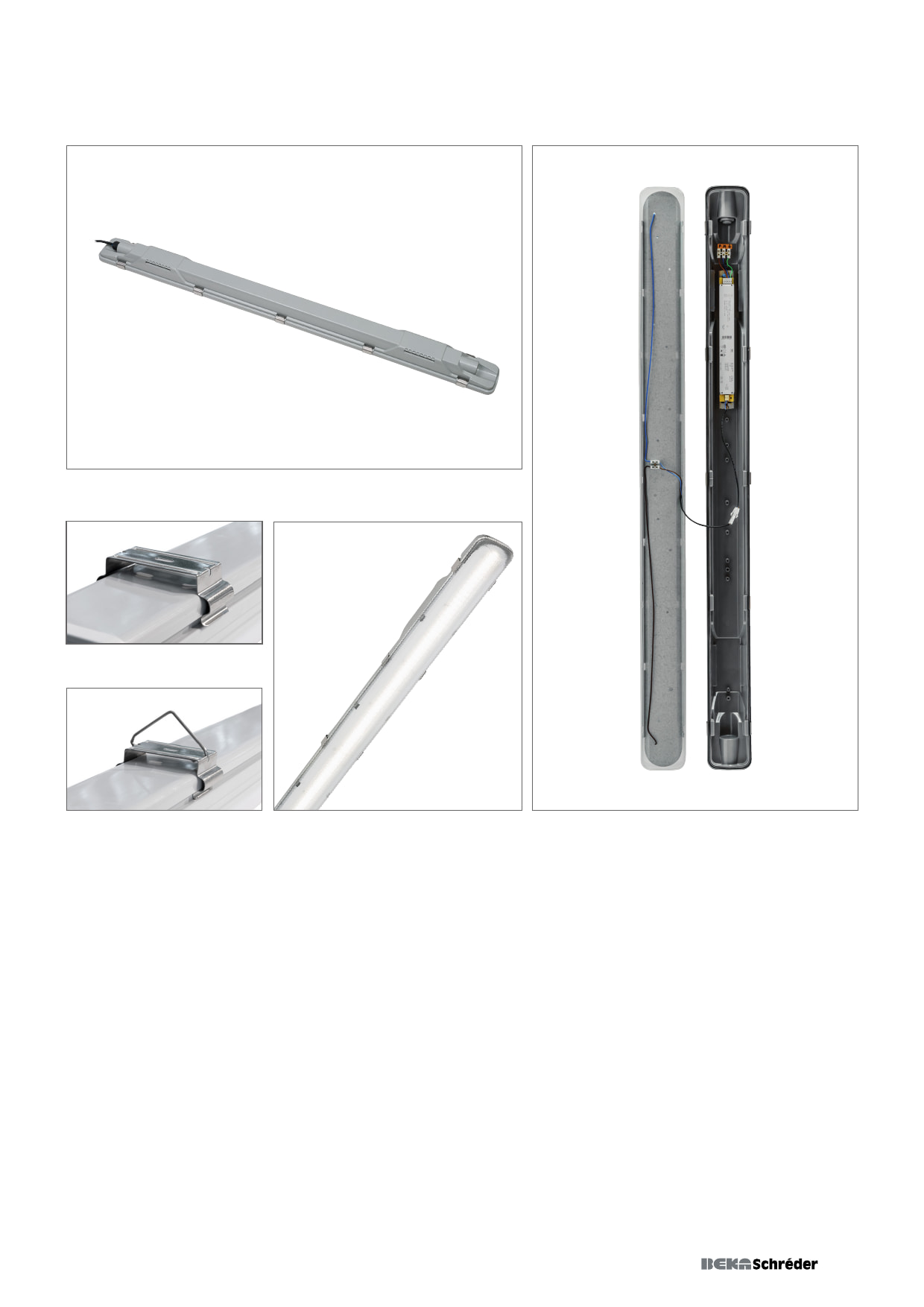

Standard mounting With two metal clips on the back of the body for surface/ wall mounting. Pendant with an additional triangle accessory provided.

Electrical information

Electrical class EU class I

Nominal voltage 230V ±10% 50Hz

Power factor > 95% at full load

Surge protection 10kV / 10kA

Electromagnetic compatibility (EMC)

SANS 55015:2013/A1:2015, SANS 61000-3-2:2014, SANS 61000- 3-3:2013, SANS 61547:2009, SANS 62493:2015

Control DALI (optional)

Optical information

LED colour temperature 4000K (Neutral white)

Colour rendering index (CRI)

≥ 80

Operating conditions

Operating temperature range (Ta)

Standard version: -35°C up to +40°C

Emergency version: -35°C up to +35°C

Lifetime of the LEDs @ Tq 25°C

For all versions 60,000h - L70B10

1165

770

97 83

92

434
