LEDTEC S with PIR Sensor

LEDTEC S Standard

100%

70%

30% Energy Savings

with 50% occupancy time (typical example)

Energy Savings

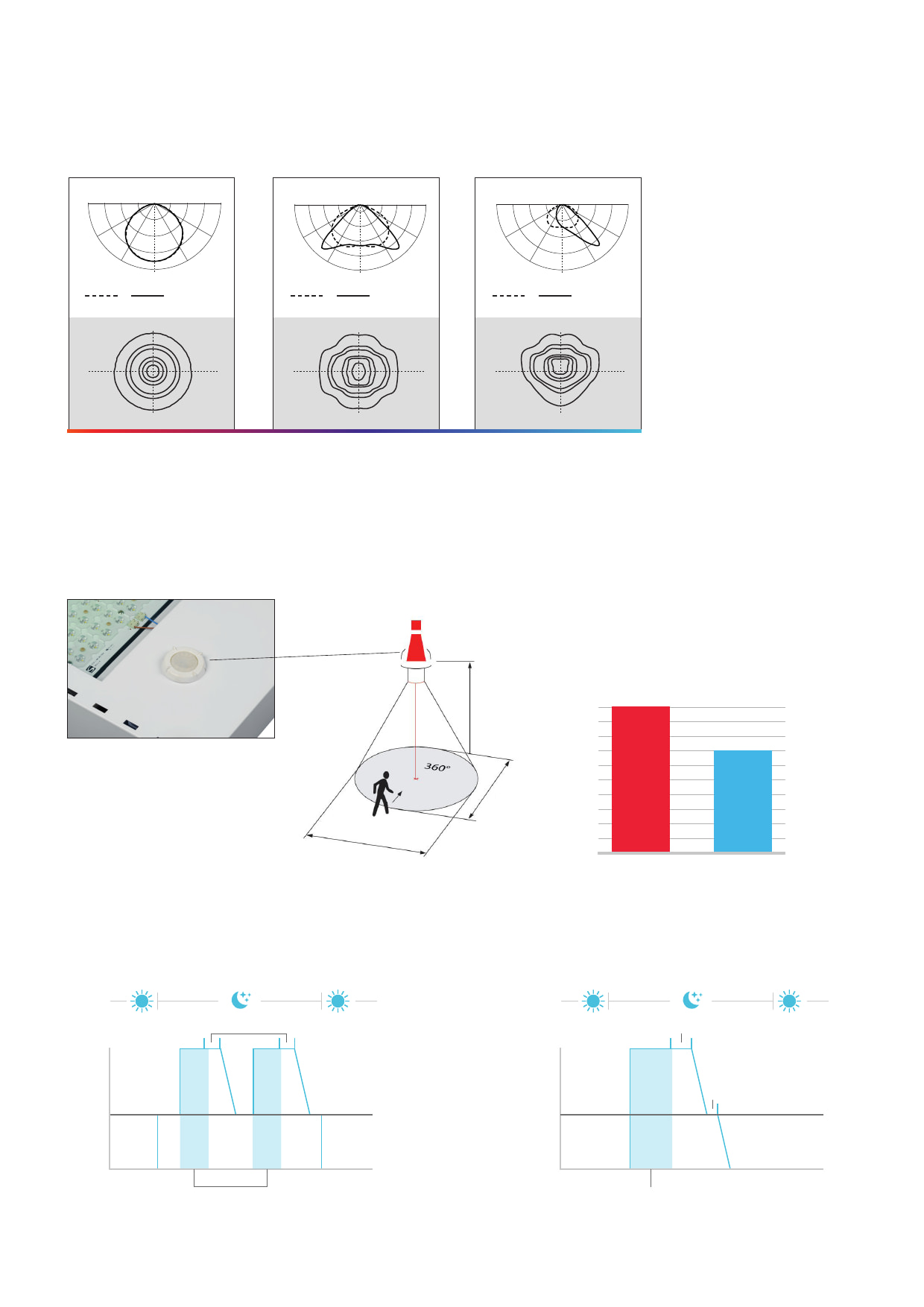

The integrated motion sensor uses a specific lens to determine a detection zone. The standard lens is suitable for most applications. As an option, lenses can be provided for special needs.

Integrated Movement & Daylight Sensor (optional)

Up to 6m

12m

12m

Movement sensor

Mode A Outdoor parking area with minimum light level at night

Features: Always ON during the night (ON at dusk; Low Dim maintains minimum level overnight;

OFF at dawn)

Dim

0%

100%

Time Delay

Occupancy

Dim

0%

100%

Time Delay

Occupancy

1/2 Time Delay

Mode B Outdoor parking area with High/Low/Off levels at night Features: At dusk, turns ON with occupancy; drops to Low

Dim level after vacancy, then turns OFF after delay; OFF at dawn

Light Distributions

5120 optic - SYM

90°

270°

180° 0°

90°/270°

0

90

60

30

cd/klm150 50350 250

0°/180°

5120 optic - ASYM

90°/270°0°/180°

90°

270°

180° 0°

90°/270°

0

90

60

30

cd/klm200400600

0°/180°

4010 optic

0

90

60

30

90°

270°

180° 0°

cd/klm200 100300
